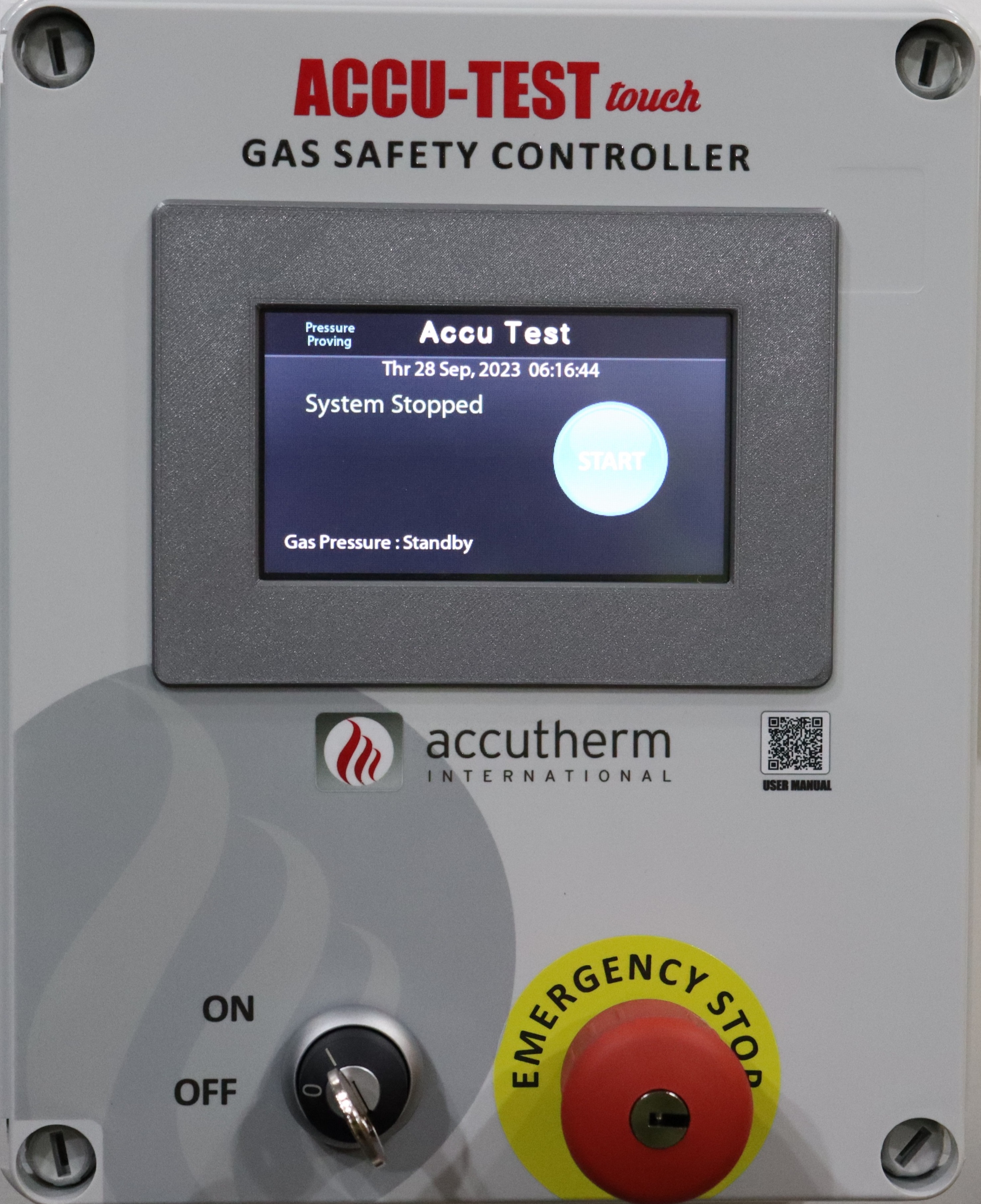

Accu-Test Touch Gas Proving Controller

Data Sheet

Accu-Test Touch Gas Proving Controller
POWER: 230VAC 50Hz Supply
ACCESS CONTROL: Keyed Isolator/HMI Pin Code
CONSTRUCTION: ABS Enclosure
DISPLAY: 4.3" Full Colour Touch Screen Interface
INPUTS:
- Gas Pressure Transmitter
- Air Flow Sensor
- Gas Detector
- Emergency Stop Pushbutton
- 2 off Fire Panel Interlock (Voltage and Dry Fire Contact)
- Remote Interlock
OUTPUTS:
- Gas Valve
- Ventilation Fan
- 2 off Configurable Outputs (System Run, System Fault, Gas Valve Open etc)
OPERATING TEMPERATURE: -5 to 55 Deg C
MOUNTING: Wall Mount as standard
DIMENSIONS: 260mmH x 210mmW x 100mmD (Not Including Buttons)
WEIGHT: 1.5kg
